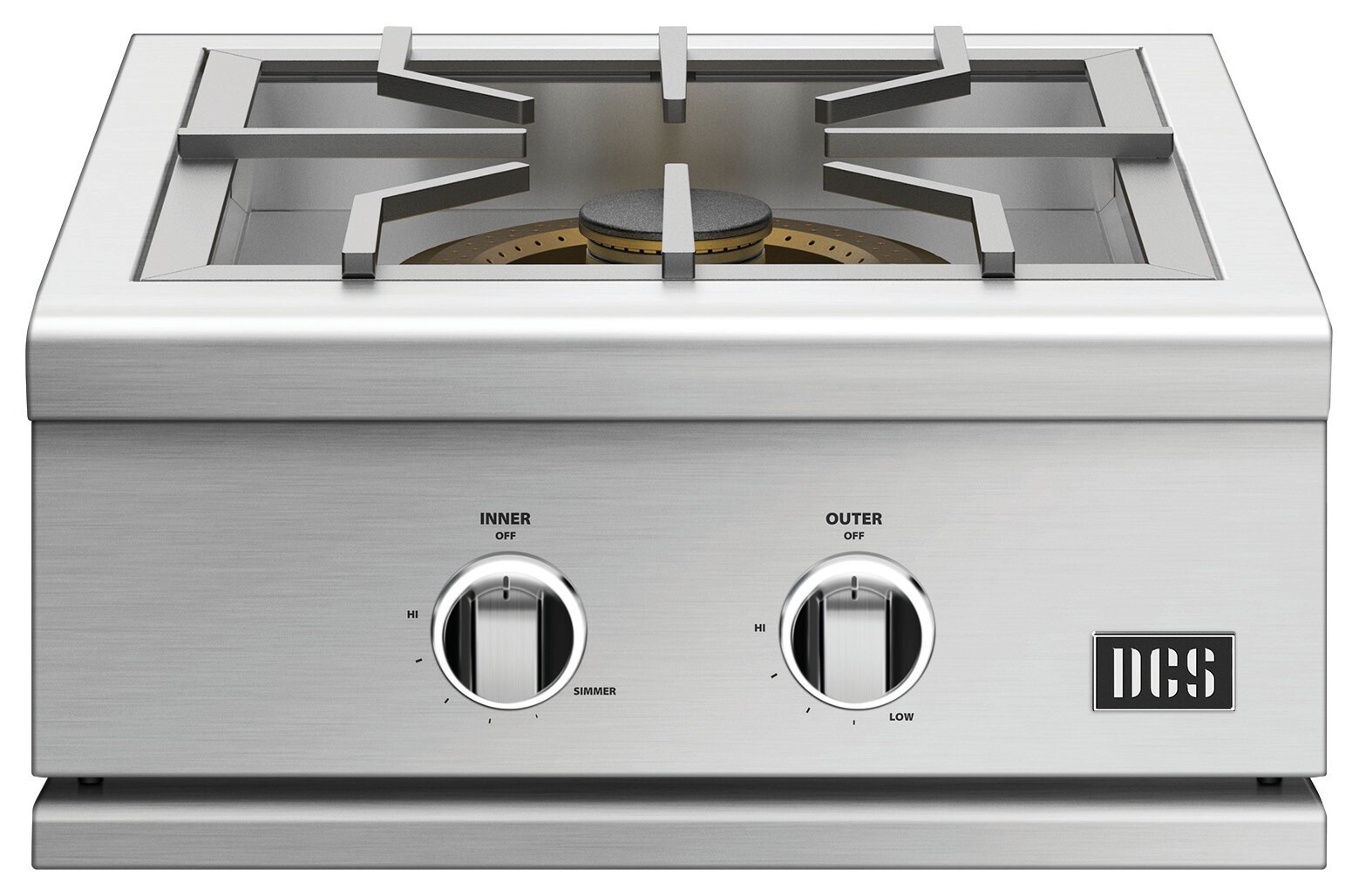

DCS PBE1-24-L
24", Series 9, Power Burner, Lp Gas
-
Tasco's
Web Price
as of Jan, 16 2021
- $3,199
- Add to compare
- Add to wishlist
Details & Features
Easily cook for a crowd on the impressive DCS Power Burner. Designed to support different sized pots and woks, it combines powerful heat with precise temperature control from 70,000 to 1,300 BTU.
- Grates are specially designed to provide stability for pots and woks of all sizes
- Combines powerful heat with precise temperature control from 70,000 to 1,300 BTU giving you flexibility for everything from a rapid boil down to a gentle simmer
- Cast brass burners accentuate the high-end aesthetics as well as ensuring the Power Burner will withstand the extremes of mother nature
- Interconnected illuminated dials to match the suite of DCS Series 9 products
Tech Specs
| Features | |
| 2 Piece removable grates | |
| Cast brass burner | |
| Ignition system | Surface |
| Metal illuminated dials | |
| Removable drip tray | |
| Small pot support | |

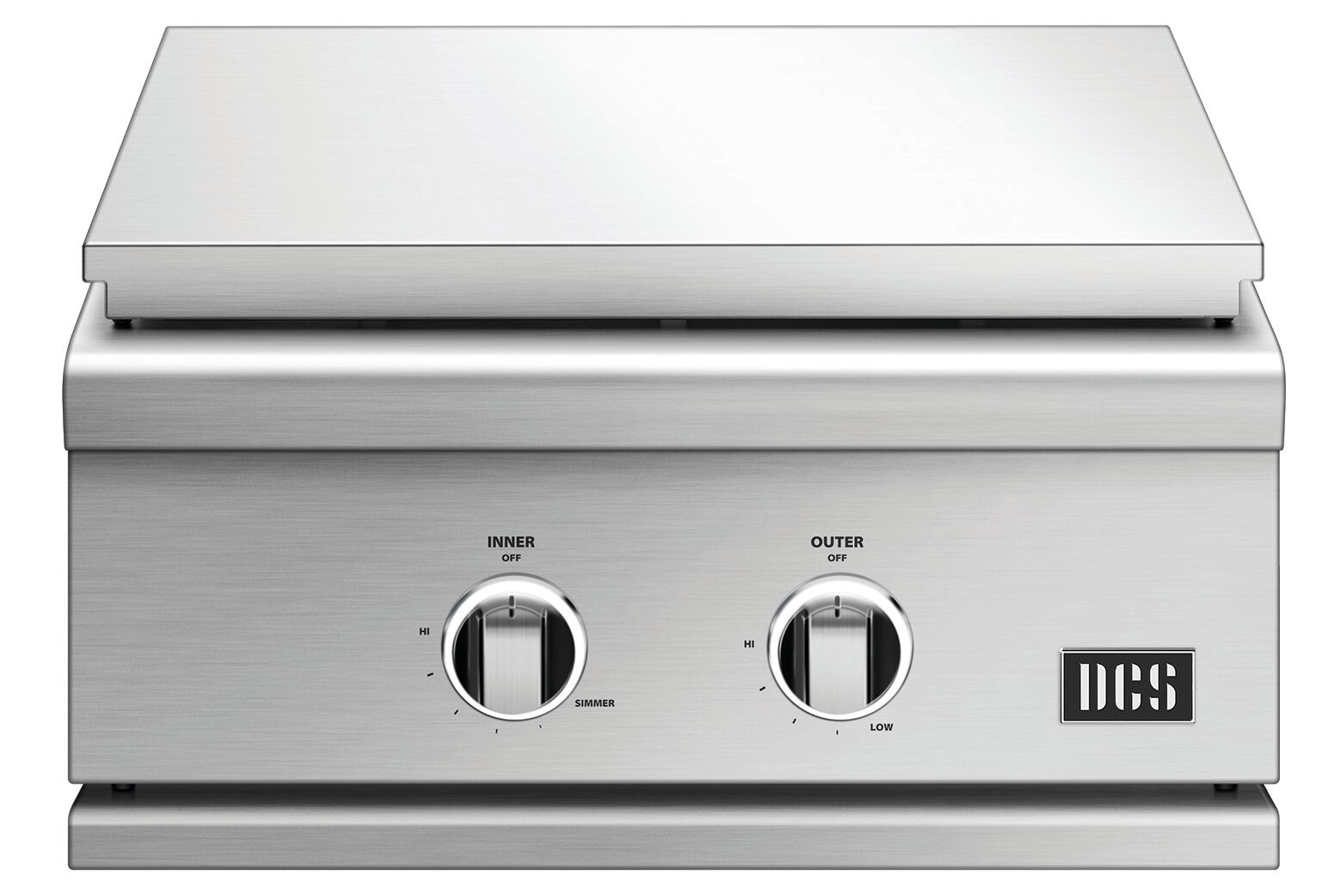

| Stainless steel cover included | |
| Wok friendly trivet | |
| Finish | |
| Material | 304 grade stainless steel |
| Weather resistant | |
| Gas requirements | |
| 1/2" NPT male with 3/8" in flare adapter | |
| Gas type | LP |
| LP hose with regulator and Type 1 connector | |
| Operational pressure | 11" W.C. |
| Supply Pressure | 12" to 14" W.C. |
| Installation dimensions | |
| Cutout depth (proud) | 22 3/4" |
| Cutout height (proud) | 10 1/8" |
| Cutout width (proud) | 22 1/2" |
| Performance | |
| Inner ring maximum BTU | 23000 |
| Minimum power in BTU | 1300 |
| Outer ring maximum BTU | 47000 |
| Total Power in BTU | 70000 |
| Power requirements | |
| Power and logic interconnectivity | |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 26 7/8" |
| Height | 10 1/2" |
| Width | 24" |
| Warranty | |
| Parts and labor | 2 years |
